Tooling Kit - Swift

SKU: Tooling Kit - Swift
(0) No Reviews yet
$485.00

This item is IN STOCK

Current Stock: 14

ABOUT THIS PRODUCT:

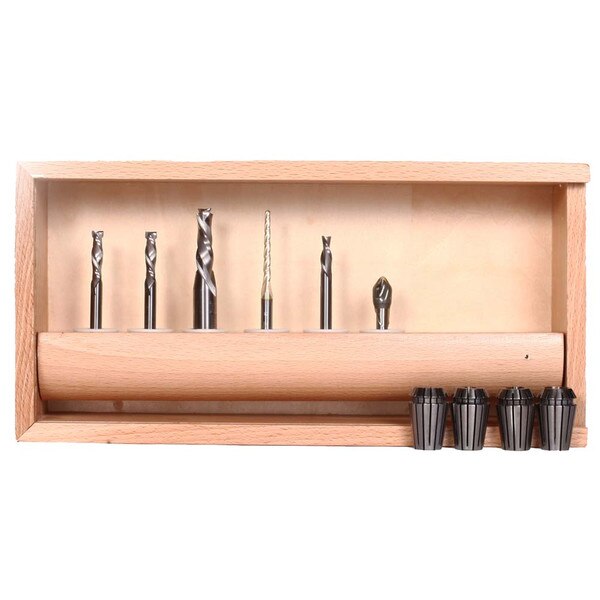

Tooling Kit for Swift 4x4 and 4x8
• 2 - 1/4" Spiral Compression
• 1 - "V" Groove 90° Angle
• 1 - 3/8" Spiral Compression
• 1 - 1/8" Spiral Plunge Down Cut
• 1 - 1/4" 3D Carving ZrN Coated
• 1 - 1/8" Collet for ER-20 Nut
• 1 - 1/4" Collet for ER-20 Nut
• 1 - 3/8" Collet for ER-20 Nut
• 1 - 1/2" Collet for ER-20 Nut

Details

Details

Untitled Document
Bits included in set:

Tooling Kit for Swift 4x4 and 4x8
• 2 - 1/4" Spiral Compression
• 1 - "V" Groove 90° Angle
• 1 - 3/8" Spiral Compression
• 1 - 1/8" Spiral Plunge Down Cut
• 1 - 1/4" 3D Carving ZrN Coated
• 1 - 1/8" Collet for ER-20 Nut
• 1 - 1/4" Collet for ER-20 Nut
• 1 - 3/8" Collet for ER-20 Nut
• 1 - 1/2" Collet for ER-20 Nut

Solid Carbide Compression Spiral Bits for Mortising Work
2 Flute
These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado.
D 1/4", B 1", B1 1/8", d 1/4", L 2-1/2", 46350
D 3/8", B 1-1/4", B1 3/16", d 1/2", L 3", 46352


CNC Spiral Flute Plunge Solid Carbide
2 Flute
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean, accurate cut, while the augering action clears chips from the cut. The “up-cut” shears from the bottom up, pulling chips from the bottom up, thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

The “down-cut” cuts from the surface down, leaving a smooth edge at the surface. Special unique carbide grade, increased clearance geometry and razor-sharp cutting edges with polish flutes provides a superior finish and longer tool life. Special unique carbide grade for longer lifetime in abrasive materials. These bits are great for production settings and excellent for creating grooves and dado cuts in softwood, hardwoods, plywood and composite materials. Primarily used on CNC machines and other automatic routers. Also can be used with hand-held and table-mounted portable routers.
D 1/4", B 3/4", d 1/4", L 2-1/2" , Tool No. 46202



'V' Groove Router Bits
2 Flute
Cut decorative ‘V’ grooves and lettering on signs with these ‘V’ Groove router bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

2 Flute
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean, accurate cut, while the augering action clears chips from the cut. The “up-cut” shears from the bottom up, pulling chips from the bottom up, thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

The “down-cut” cuts from the surface down, leaving a smooth edge at the surface. Special unique carbide grade, increased clearance geometry and razor-sharp cutting edges with polish flutes provides a superior finish and longer tool life. Special unique carbide grade for longer lifetime in abrasive materials. These bits are great for production settings and excellent for creating grooves and dado cuts in softwood, hardwoods, plywood and composite materials. Primarily used on CNC machines and other automatic routers. Also can be used with hand-held and table-mounted portable routers.
a° 90°, D 3/8", B 7/16", B1 3/16, d 1/4", L 1-5/8", Tool No. 45700

Solid Carbide 2D and 3D Carving Zirconium Nitride (ZrN) Coated Router Bits
Up-Cut

Tapered Ball Nose (Conical Ball) & Flat Bottom (End Mill)

Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum, & wood with any Laguna CNC router. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction & heat buildup.

Applications
• Precision 2D and 3D large scale carving
• Dimensional signage
• 3D millWork
• 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
Materials to cut:
HDU, Wood, PVC, Acrylic, Dibond®, MDF, HDF, Aluminum, Brass, Copper, Bronze, Graphite, Phenolic, Phenolic Composites, Plastic, Sign Board, Sign Foam & 20lbs High Density Urethane
For CNC machines, Carving machines and router tables.
D 1/8", a° 1°, B 1-1/2", R 1/16", Flutes 3, d 1/4", L 3"


4-Pc Set ER32 High Precision Spring Collet Collection
CNC Replacement Parts

Amana Tool Corp offers Metric and Inches HIGH PRECISION CNC Spring Collets in ER and RDO Styles.
All spring collets are inspected for quality & 100% accuracy. Standard 0.0004" T.I.R.

The high precision spring collets allow to reduce the vibrations on the tools and motors, assure better results and prolong the life of the tools and electrospindles. Our high precision spring collets used on our high precision toolholders give you the very best tool performance.
Kit includes: 1X 1/8", 1X 1/4", 1X 3/8", 1X 1/2"
