Tooling Kit - SmartShop II

SKU: Tooling Kit - SmartShop II, SUV, III
(0) No Reviews yet
$1,146.99

This item is IN STOCK

Current Stock: 28

ABOUT THIS PRODUCT:

Qty       Item
1  -  1-1/2" straight bit
2  -  1/4" down shear spiral
2  -  3/8" down shear spiral
1  -  90 degree v-bit
2  -  1/4" compression bits
2  -  3/8" compression bits
2  -  1/4" ER32 collets
2  -  3/8" ER32 collets
1  -  10mm ER32 collet
3  -  1/2" ER32 collet
2  -  5mm right boring bits

Details

Details

Untitled Document

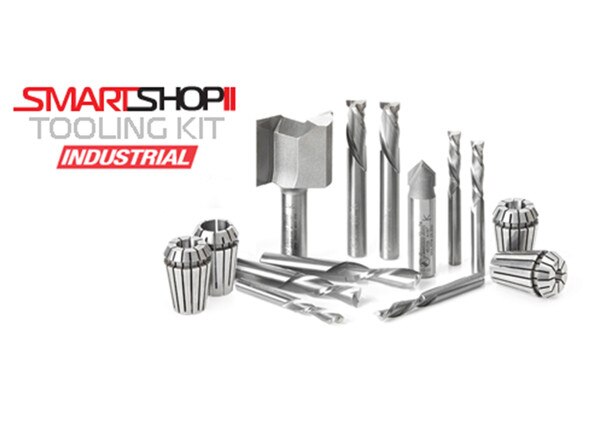

Bits included in set:

• 1 - 1-1/2" straight plunge
• 2 - 1/4" down shear spiral
• 2 - 3/8" down shear spiral
• 1 - 90 degree v-bit
• 2 - 1/4" compression bits
• 2 - 3/8" compression bits
• 2 - 1/4" ER32 collets
• 2 - 3/8" ER32 collets
• 1 - 10mm ER32 collet
• 3 - 1/2" ER32 collet
• 2 - 5mm right boring bits


CNC Straight Plunge - Open Flute Router Bits
2 Flute
Mill broad surfaces with any of these large-diameter, plunge-cutting bits.
The open flute design provides excellent chip clearance, essential for the high feed rates characteristic of CNC routers.

D 1-1/2", B 1-1/4", d 1/2", L 2-7/8"


CNC Spiral Flute Plunge Solid Carbide
2 Flute
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean, accurate cut, while the augering action clears chips from the cut. The “up-cut” shears from the bottom up, pulling chips from the bottom up, thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

The “down-cut” cuts from the surface down, leaving a smooth edge at the surface. Special unique carbide grade, increased clearance geometry and razor-sharp cutting edges with polish flutes provides a superior finish and longer tool life. Special unique carbide grade for longer lifetime in abrasive materials. These bits are great for production settings and excellent for creating grooves and dado cuts in softwood, hardwoods, plywood and composite materials. Primarily used on CNC machines and other automatic routers. Also can be used with hand-held and table-mounted portable routers.
D 3/8", B 1-1/4", d 3/8", Tool No. 46420




'V' Groove Router Bits
2 Flute
Cut decorative ‘V’ grooves and lettering on signs with these ‘V’ Groove router bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

2 Flute
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean, accurate cut, while the augering action clears chips from the cut. The “up-cut” shears from the bottom up, pulling chips from the bottom up, thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

The “down-cut” cuts from the surface down, leaving a smooth edge at the surface. Special unique carbide grade, increased clearance geometry and razor-sharp cutting edges with polish flutes provides a superior finish and longer tool life. Special unique carbide grade for longer lifetime in abrasive materials. These bits are great for production settings and excellent for creating grooves and dado cuts in softwood, hardwoods, plywood and composite materials. Primarily used on CNC machines and other automatic routers. Also can be used with hand-held and table-mounted portable routers.
a° 60°, D 1/2", B 5/8", 7/16", d 1/4", L 1-3/4", Tool No. 45708

Solid Carbide Compression Spiral Bits for Mortising Work
2 Flute
These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado.
D 1/4", B 1", B1 1/8", d 1/4", L 2-1/2", 46350
D 3/8", B 7/8", B1 1/8", d 3/8", L 3", 46367



4-Pc Set ER32 High Precision Spring Collet Collection
CNC Replacement Parts

Amana Tool Corp offers Metric and Inches HIGH PRECISION CNC Spring Collets in ER and RDO Styles.
All spring collets are inspected for quality & 100% accuracy. Standard 0.0004" T.I.R.

The high precision spring collets allow to reduce the vibrations on the tools and motors, assure better results and prolong the life of the tools and electrospindles. Our high precision spring collets used on our high precision toolholders give you the very best tool performance.
Kit includes: 2X 1/4", 2X 3/8", 1X 9-10mm, 3X 1/2"
