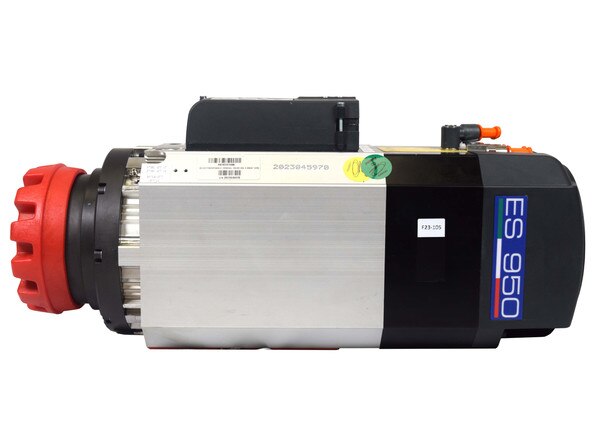

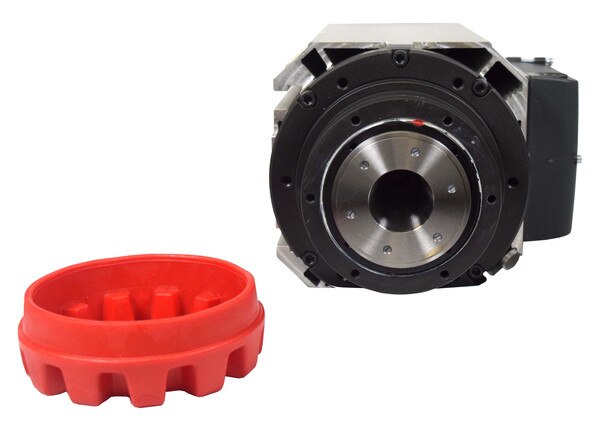

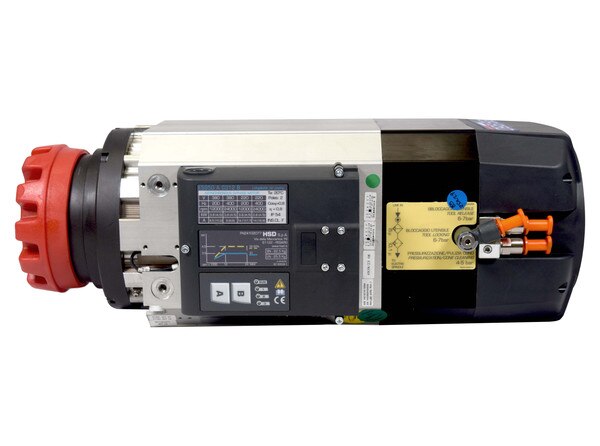

CNC Machine 6HP HSD ATC SPINDLE, 220/380V - ES950A

SKU: 6HP HSD ATC SPINDLE, 220 380V - ES950A
(0) No Reviews yet
$6,500.00

This item is IN STOCK

Current Stock: 47

ABOUT THIS PRODUCT:

6HP HSD Automatic Tool Change (ATC) SPINDLE, 220/380 delivers a seamless blend of power, precision, and versatility to your production process.

Specs:

Model:ES950A - H6161H1696

Weight:22.0 kg

Drawing:H6161

Rated Current:14.7 / 8.5 Amp

Rated Power (S1):3.8 kW

Number of Poles:2

Rated Power (S6):4.5 kW

Insulation Class:F

HP:5.0

IP class:54

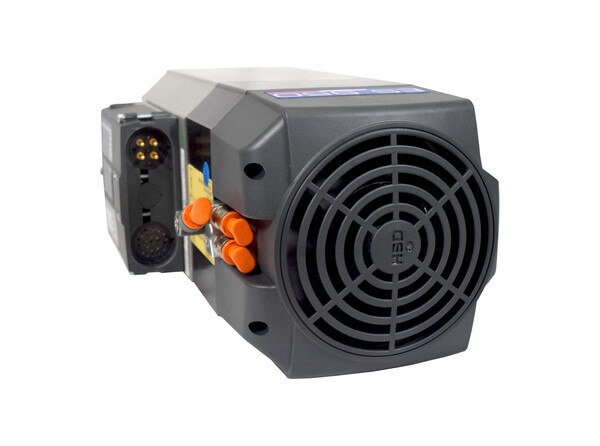

Refrigeration:Electric Fan

Front Bearings: Super-precision ceramic

Tool Fixation:ISO30

Rear Bearings: Super-precision ceramic

Rated Frequency:200/400 Hz

Voltage:220/380 V

Nominal Rotation12,000/24,000 RPM
